••• IF YOU ARE INTERESTED IN A REPLICA FROM NOW THROUGH APRIL, PLEASE CALL OR EMAIL. •••
[email protected] (909) 803-4013

Replica bombs are currently on back order Please allow 2-6 weeks for delivery.

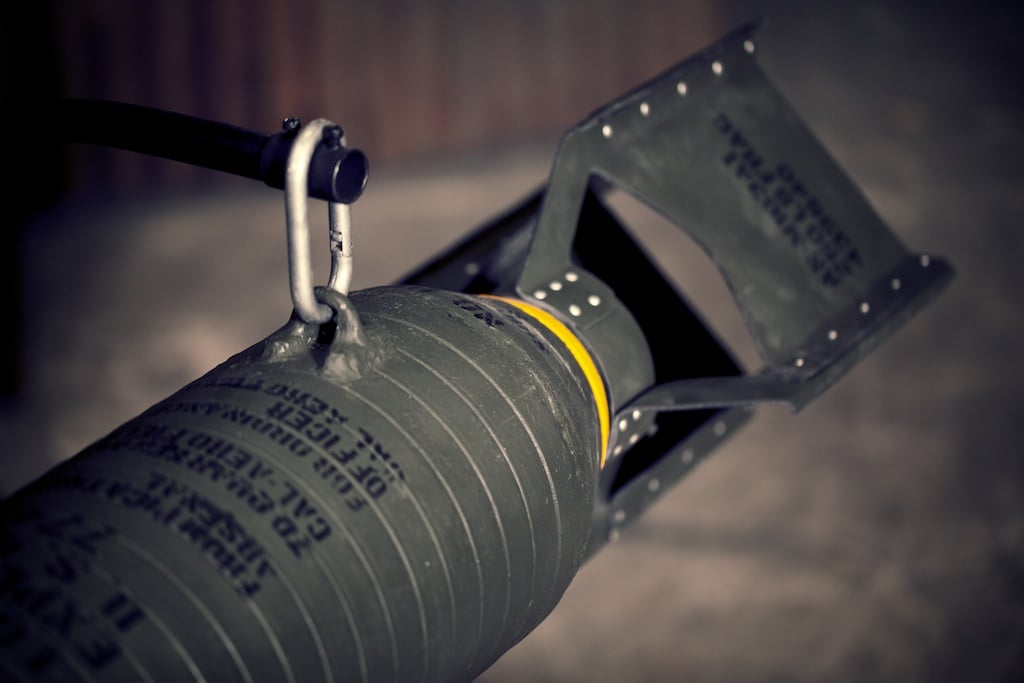

AN-M81 260 fragmentation comp B - Air Worthy
THIS BOMB LOOKS SO REAL, IT FOOLS THE EXPERTS.

Gel Coated olive drab (ARMY GREEN) with 1" yellow stripes and black stenciling
Bomb includes: Body, fins, fin lock nut, & nose plug.

REPLICA WEIGHT: ................ 9-10 lbs.
DIAMETER:..........................8.2 INCHES
OVERALL LENGTH: ....... 39.5 INCHES

THIS ITEM IS FOR DISPLAY ONLY

All Replica bombs are build from light weight composite materials and aluminum. All threads are identical and interchangeable with the genuine article. Metal fins are powder coated. Composite parts are coated with gelcoat which is more durable then paint. The gel coat used is UV stabilized and can handle prolonged exposure to harsh weather and from people poking and prodding.

FUN FACTS:

The AN-M81 fragmentation bomb (1940-1950's), used against heavily resistant and concentrated targets such as light armored motor vehicles, PT boats, and landing barges, is similar in structure to the 20 lb. AN-M41 bomb. The case which is 1” thick consists of a closely wound helix of bar steel over an inner steel cylinder; the ends of the case are forged. There is an alternate construction which calls for a longer tube. The wire is wound the full length of the tube, and then the case is forged at the ends forming the nose and tail of the bomb. Fuse adapters are welded in at both ends, This heavy ease reduces the vulnerability of the explosive charge to enemy small arms fire. The bomb has a box type fin assembly and a standard double and single suspension lug. It is also equipped with an AN-Ml03 nose fuse and an AN-MlOOA2 non-delay tail fuse. The overall length is 43.75 inches and the diameter, 8 inches. The M81 is loaded with composition B; alternate loadings are Ednatol and TNT.
